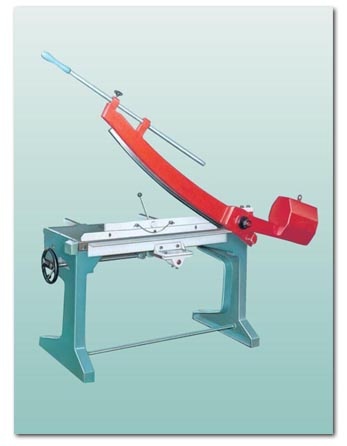

NTP 1000/2,5J - NTP 1000/2,5JD

Fulfilment:

• The machine is made of cast iron.
• The machine enables to shear endless strips too .
• The machine is also avaialable with a cushioned stop bar - NTP 1000/2,5 JD.

Technical specification:

Type NTP		1000/2,5J	1000/2,5JD
Max.thickness of used sheet at of 450 MPa	mm	2,5	2,5
Max. shearing length without material - shifting	mm	1000	1000
Max. extension of stop bar	mm	510	510
Min. width of sheared band - with stop bar	mm	60	1
Angle of swivelling stop bar		±30	±30
Dimension of working table: lenght, width	mm	1300, 520	1300, 520
Weight	kg	500	500
