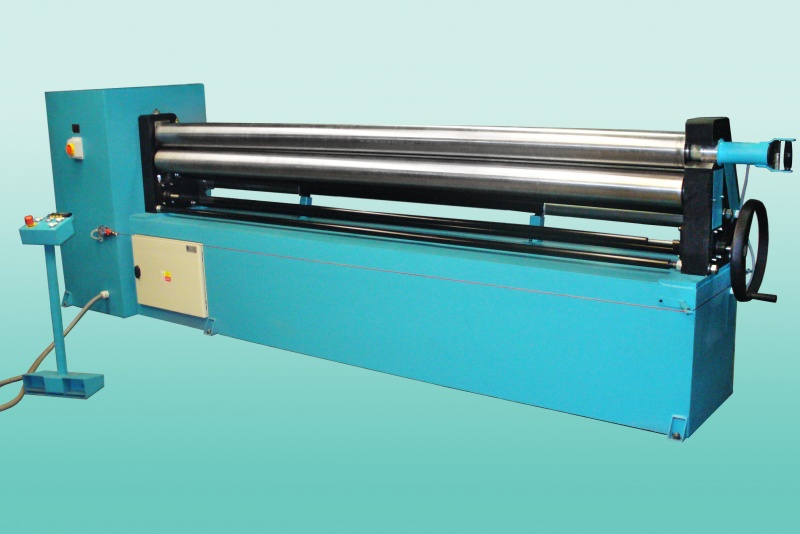

XZC 2000/8 E - XZC 2000/9 E - XZC 2000/10 E

Fulfilment:

• Motor adjustment of back roll.
• Conical bending device.
• Mobile control panel.
• Stop for back roll.
• ES Deklaration (CE).

Technical specification:

Type XZC		2000/8 E	2000/9 E	2000/10 E
Rolls length	mm	2015	2015	2015
Max. thickness	mm	8,0	9,0	10,0
Rolls diameter	mm	200	210	220
Speed - roll bending	m/min	3,9	4,1	4,3
Power input	kW	5,5	5,5	5,5
Dimension: lenght, width, height	mm	3300, 1200, 1400	3300, 1200, 1400	3300, 1200, 1400
Weight	kg	3300	3460	3630
