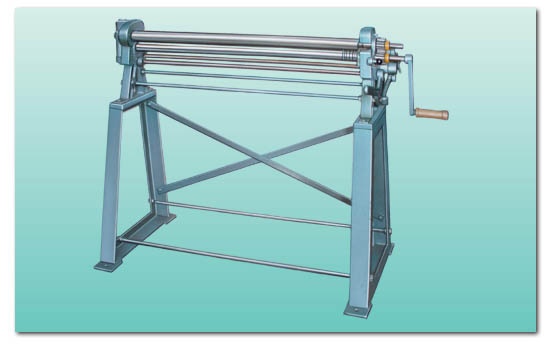

XZC 1000/0,63 - XZC 1000/1 - XZC 1000/1,2 - XZC 1300/0,63

Fulfilment:

  • The machine is made from cast iron.

Technical specification:

Type XZC   1000/0,63 1000/1
Working length of rolls mm 1015 1015
Max.thickness of used
sheet at of 400 MPa
mm 0,63 1,0
Diameter of rolls mm  48 55
Outside dimensions:
lenght, width, height
mm 1520,630,1034 1520,630,1034
Weight kg 115 130

Type XZC   1000/1,2 1300/0,63
Working length of rolls mm 1015  1315
Max.thickness of used
sheet at of 400 MPa
mm 1,2  0,63
Diameter of rolls mm 60 55
Outside dimensions:
lenght, width, height
mm 1520,630,1034  1820,630,1034
Weight kg 145  160
