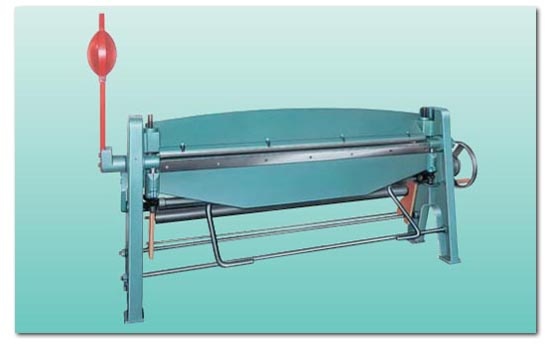

XOCR 1300/2,5 - XOCR 2000/2

Fulfilment:

• The machine is made from cast iron.

Special oufit:

• prism (with V-groove)
• rolls for producing gutter size 20 - 25 - 28 - 33
• rolling up rod
• shaft
• bending rulers according the wish
• split ruler

Technical specification:

Type XOCR		1300/2,5	2000/2
Working length	mm	1330	2030
Max.thickness of used sheet at of 400 MPa	mm	2,5	2
Max. bend angle		135	135
Upper bar lift	mm	120	120
Outside dimensions: lenght, width, height	mm	2200,720,1830	2900,720,1830
Weight	kg	910	1250
