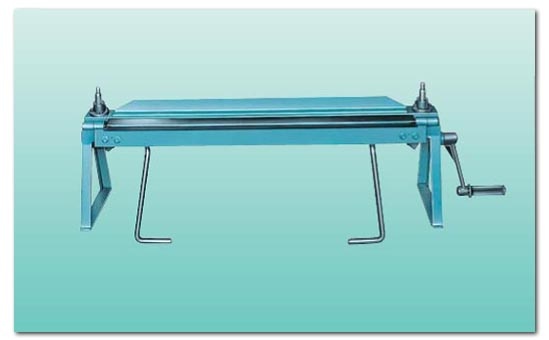

XOCR1000/0,7- XOCR1000/0,7A

Fulfilment:

• The machine is made from steel.
• The bending bar cannot be put in another position.
• Lifting of the upper jaw with a screw or eccentric.


Technical specification:

Type XOCR		1000/0,7	1000/0,7 A
The way of lift		The screw	The excenter
Working length	mm	1020	1020
Max.thickness of used sheet at of 400 MPa	mm	0,7	0,7
Max. bend angle		130	130
Max. bend angle of bending with 25 mm border		160	160
Upper bar lift	mm	40	20
Outside dimensions: lenght, width, height	mm	1380x300x490	1380x300x490
Weight	kg	51	44
